Description

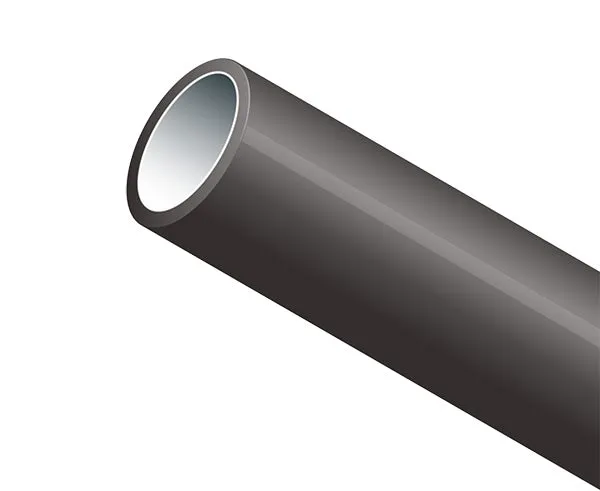

NEMA TC7 Standard HDPE Conduit, from ½" to 8"
Our HDPE conduit made in accordance with requirements of NEMA TC-7 and is ideal for the installation and protection of electrical cables underground.
For more information on the different types of Dura-Line products we carry, view our Dura-Line page .
Installations
Applications
- Electrical
Features
Features
- Available from ½" to 8"
- Manufactured from flexible HDPE, makes gradual bends without special equipment
- Continuous lengths reduce joining costs
- Excellent low-temperature properties, allows installation in cold climates
- Outstanding long-term cable protection from shifting ground, rock, and root impingement
- Provides a permanent pathway, simplifies future cable repairs or replacement
- Can be encased in concrete
- Footage/Meter Markings
Specifications
Specifications
Available Sizes
Size Range Available
- ½"
- ¾"
- 1"
- 1 ¼"
- 1 ½"
- 2"
- 2 ½"
- 3"
- 4"
- 5"
- 6"
- 8"
Wall Types
- EPEC-11 (SDR 11)
- EPEC-13.5 (SDR 13.5)
- EPEC-17 (SDR 17)
- EPEC-40 (SCH 40)
- EPEC-80 (SCH 80)
Standard Colors
- Blue
- Orange
- Green
- Brown
- Gray
- White
- Red
- Black
- Terra Cotta
