Description

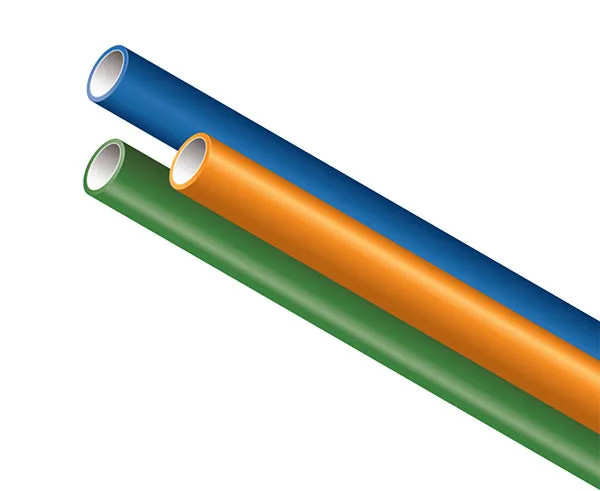

Single Cell MicroDucts HDPE with SILCORE® ULF Lining, from 5mm OD – 27mm OD
MicroDucts are a great way of getting the most versatility out of your current empty duct system. Why install one fiber cable when you could install multiple MicroDucts? Each MicroDuct is a pathway for fiber now or in the future. Expand your network as your needs require.
For more information on the different types of Dura-Line products we carry, view our Dura-Line page .
Installations
Applications
- Campus Healthcare Industrial
Features
Features
- HDPE MicroDucts available from 5mm OD – 27mm OD
- Co-extruded with SILICORE®ULF permanent lining to reduce friction on cable installs
- Utilize space in an occupied duct
- Revitalize existing networks with overrides
- Substantially reduce construction costs & deployment time
- Install up to 432 count fiber MicroCables
- Footage/Meter Markings
- Internal Ribs
- Silicore® ULF
Specifications
Specifications
Available Sizes
MicroDuct size (OD/ID mm)
- 27/20
- 22/18
- 22/16
- 18/14
- 18/10
- 16/13
- 16/12
- 14/10
- 12.7/10
- 12.7/8
- 12/10
- 10/8
- 8.5/6
- 8/6
- 7/3.5
- 5/3.5
Standard Colors
- Blue
- Orange
- Green
- Brown
- Gray
- White
- Red
- Black
- Yellow
- Terra Cotta
